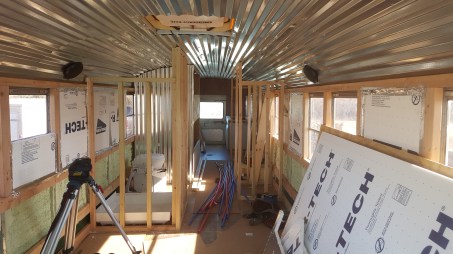

The bathroom was a bit complex bc I wanted a shower that was comfortable for Crab to stand in, comfortable to use the large compost toilet, and have room to put in the American Made RV water heater we decided to go with, Precision Temp’s RV 550. The size of the bathroom was adjustable at this point, but we went with interior measurements of 32″ deep (The exterior depth was the same as the bunkroom located on one side of the bathroom) x 70″ long. (Measured with the corrugated metal we used as the paneling). Exterior length down the bus, the bathroom measures 77″. The shower pan was 32″x32″ from Home Depot. Remember, we ran our electrical after we built because we had no idea what the space would really look like or how it would function really until we built it. Total Newbies!:)

We painted all of the framing wood in the bathroom with Red Guard. Thus was suggested by a contractor We met. He swears by it. It paints on pepto bismol pink, but dries a red plastic covering over whatever you paint. So if water ever gets through, it will save the wood at least! We then used galvanized corrugated metal as the walls and used hex head screws with rubber washers to help seal where we had to install. I used a clear silicone to caulk the seams.in the shower and where the wall met the ceiling.

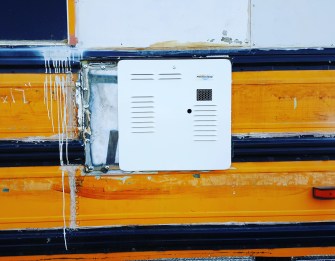

We had to cut a hole in the side of the bus to install the tankless water heater and allow it to vent properly. Well we cut it too big….and then hung a piece of metal to cover the mess up lol. We had some experience with metal work so this part no longer seemed so scary and daunting. Confidence was building:) We actually felt good about making a hole in the bus. Wowza…

The Plumbing for the shower looked like this:

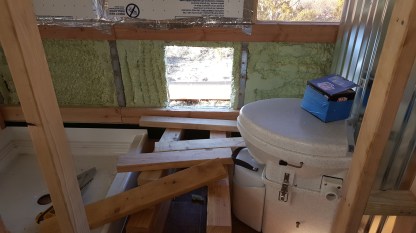

The Toilet:

After much research on youtube and seeing how people liked their composting toilets, we decided to not build a black water tank and just use a compost toilet! The Nature’s Head was what we decided on, as it was really the only one I could find! I wrote an article The Dirty Rotten Truth About Compost Toilets for an in depth look at how I like ours.

We positioned it in the corner of the bathroom so we would have space to sit comfortably, and be able to vent it properly, and plug it in to a power source so the small fan inside runs to keep it from being stinky.

Plumbing Propane: (link to full article coming soon!)

This happened towards the end of the build when we were finished with the propane “cage” we fabricated at the rear of the bus on the extension we also built on. This way, we knew exactly the distance and we were just measuring, cutting, and flaring. We had our great Mentor, Robbie, to show us how to do a double flare that was perfect (we had a lot of re-dos doing the flare at first, but it is very important it is done without having cracks or uneven edges on the flare). A double flare is RV standard for double safety, basically, you can find this out on a google search. However, a single flare will do the trick, but if you already have the Flaring kit, you might as well do a double and be safe. (If you do this, have someone look at it that approves. Try a heating/cooling business, A/C repair. You can even have a licensed propane inspector check it out. Might cost $100 but its worth it if you are not sure. )

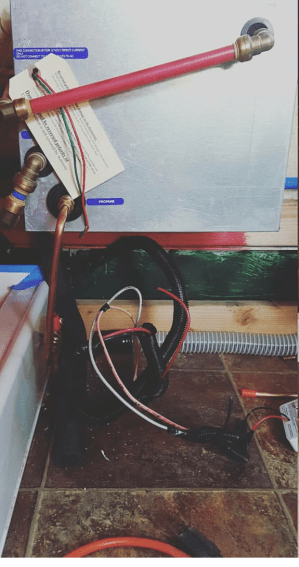

We ran copper piping from the propane cage we built underneath the bus up through the floor underneath the water heater. Underneath the bus, right underneath the water heater, we “T”ed a connection to also connect the RV refrigerator to propane since we bought a 2 way by Norcold (info on that in a future article) and it was just a few feet away on the same side of the bus.

And since we are talking about propane, lets talk safety. NO BUILD IS MORE IMPORTANT THAN SAFETY. At every connection (2) inside of the bus, I have a Propane Sensor on the ground (PROPANE IS HEAVY AND WILL DROP TO THE GROUND NOT FLOAT) connected 12 V to the SOLAR battieries and they are on 24/7. That is not to say that spraying febreze or other chemical wont’s set off the sensors…that has happened…but I know they work! We also put on and off valves inside underneath the water heater and fireplace so we could turn off the propane easily in here without going outside.

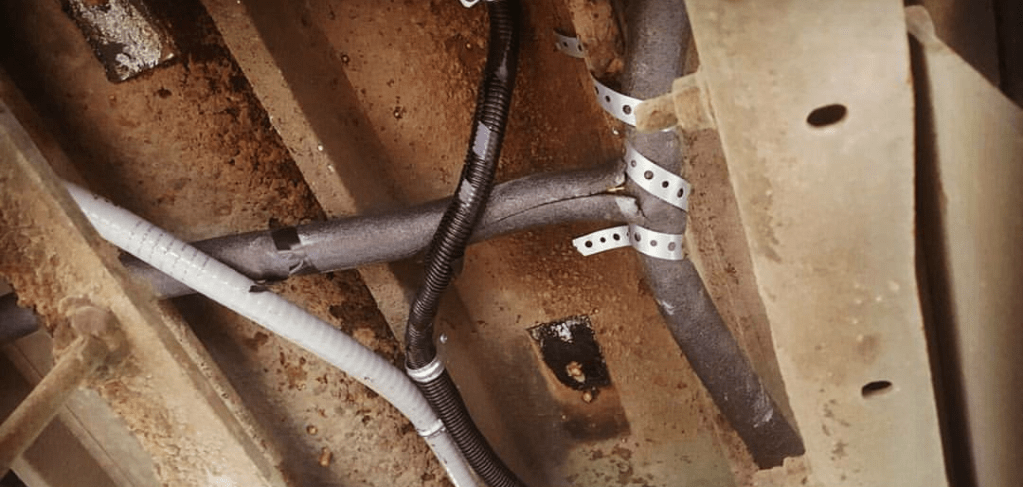

Also, we wrapped our copper in foam insulation so that it would not rub against anything underneath the bus. REMEMBER VIBRATION IS YOUR ENEMY. ALWAYS THINK OF HOW THINGS WILL VIBRATE or TWIST while bumping down the road! And things move! We also attached the foam covered pipe with metal hangers securely to the frame of the bus with TEK metal screws.

FINISHING:

Crab built a box to cover the plumbing, propane, and water heater and I put a basket on top of it for an air freshener, lotion, and TP holding area. We also trimmed around the bottom of the box and the doorways! We should have gotten a type of cover for the top, stone or wood, but we always keep our eyes open for something to add later.

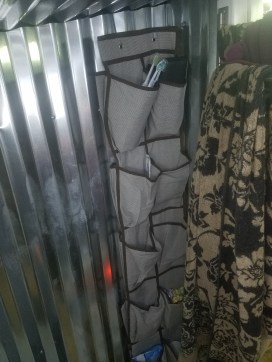

I use a friend’s old shoe organizer to organize our bathroom necessities. With 3 girls and guy that shaves his head, there are quite a few pockets filled with feminine hygiene, extra soap, razor blades from dollar shave club, sunscreen, face and hair masks, all of our toothpaste and brushes…etc. It works Great!

We have a curtain for privacy when showering that we tuck behind the organizer when no one is in their. I also orginally had a towel hanger there but it was in the way a lot so it was removed and we have since found another place for towels.

DRAIN LINES: (another article coming)

When it came to installing the drain lines, again, this was something never done before. We read the lines should hang at a 1/4″ slant all the way to the end. This lets gravity do its job. So we used some of these awesome metal straps with holes in them (we used these for lots of stuff and hanging things) to hang the 1″ PVC from the sink drain under the bus to the shower, all the way to the rear of the bus to the Gray water tank we installed at a later time while on the road (that will be in the future drain line article).

A Look Back:

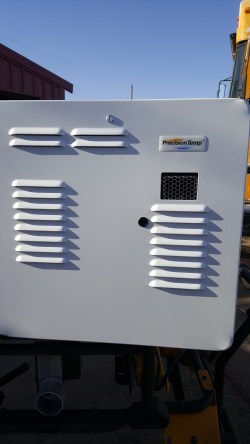

The Rv550 has worked decently the last almost 2 years. Here are the issues we had. The first time we installed it, the face that goes on the outside of the bus didnt really fit.

The company has great customer support. They sent us a new one, no issues. After about 8 months and tracking from Texas to Washington then down to Cali, the water heater sprung a leak shooting water down the outside side of the bus. At least it wasn’t inside. The company sent us another new one, took back the old one, all paid for. It just sucked to have to deal with. Over a year later we traveled from Cali to Arizona and have been exploring the state, no issues. It is hard to find the correct setting for how hot you need it, and lately the hose being in the sun is enough to get the perfect temp shower lol. If it craps again, though, and isn’t covered with the warranty I want to take out the box Crab made to cover it, and install an Eco Temp or other style I have seen other skoolie/tinyhousers use. And we will get some floor space back in the bathroom which would be a cool change:).
